Buffer

Short Description:

The buffer is a safety device installed at the bottom of the elevator shaft. Its function is to act as a buffer when the elevator falls. There are spring buffers, hydraulic buffers, etc., the purpose is to use the energy storage effect of the buffer to consume the impact energy to ensure the safety of passengers in the elevator.


Product Detail

Product Tags

buffer-(1)

Model No.: AF-F01/F02/F03

Oil buffer

The buffer is mainly suitbale for capsules or benbath the heavy, need to be used is installed, the safety switch through the switch lever to realize action, can choose to manually reset or automatic reset, and its position state according to the actual installation should be adjusted.

TYPE S(mm) H(mm) B*A(mm) b*a(mm)
F01 80 315 125*200 90*150
F02 175 510 125*200 90*150
F03 210 600 125*200 90*150

Model No.:AF-F04~07

Oil buffer

TYPE H(mm) H1(mm) V(m/s) (P+Q)1(kg)
F04 100 420 1 900-3000
F05 175 580 1.6 900-3000
F06 206 673 1.75 900-3000
F07 275 810 2 900-3000





buffer-(2)
buffer-(3)

Model No.:AF-F08~19

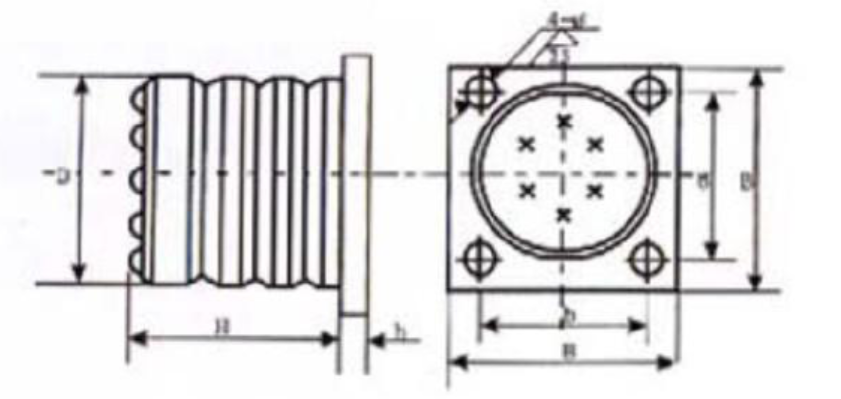

Polyurethane Buffer

TYPE D*H B b h φ Maxi. buffer stroke Applicable elevator rated speed allowable mass range(P+Q)kg
F08 80*96 108 80 6 14 105 ≤0.63m/s 800-200
F09 100*160 128 96 6 14 116 ≤1.0m/s 1900-500
F10 120*192 160 126 6 14 136 ≤1.0m/s 2200-500
F11 130*205 160 126 6 14 146 ≤1.0m/s 2820-500
F12 150*220 200 156 6 16 168 ≤1.0m/s 4200-500
F13 140*300 200 156 6 16 236 ≤1.0m/s 5500-500
F14 80*96 108 80 6 12 68 ≤0.63m/s 1500-500
F15 100*120 128 96 6 14 86 ≤0.63m/s 2800-500
F16 130*156 160 126 6 14 109 ≤0.63m/s 4500-500
F17 160*200 200 156 6 16 150 ≤0.63m/s 6000-1600
F18 200*200 246 196 6 16 156 ≤0.63m/s 9680-500
F19 140*160 200 156 6 16 120 ≤0.63m/s 5500-500
